Under Trucker® Ladder

SKU: 6966

$760.00

Clear

Description

Trucker I

ANSI A14.7-2011 Under Trucker® Ladder

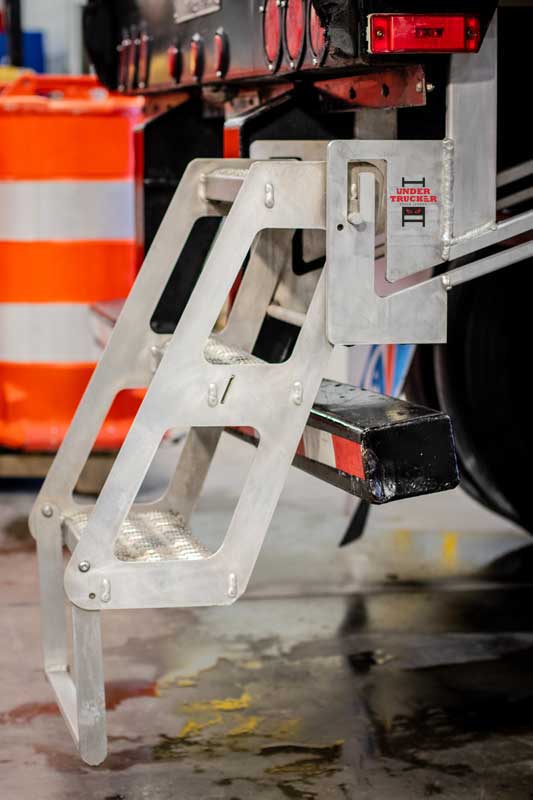

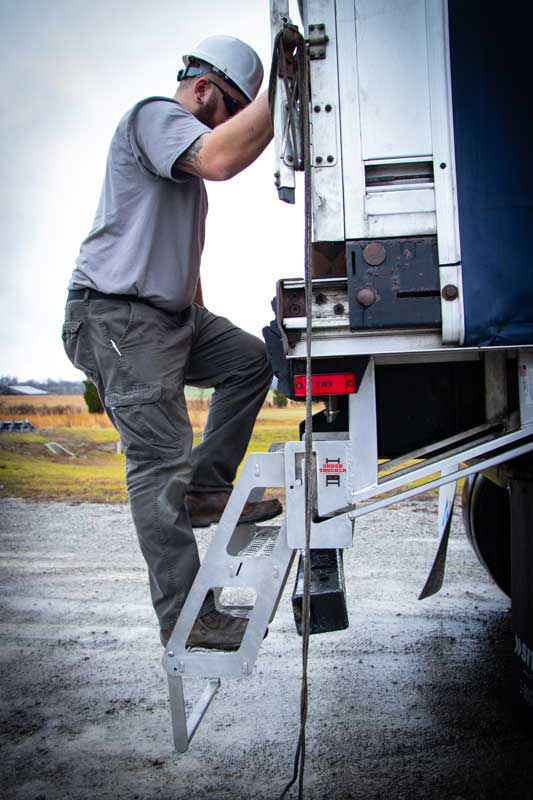

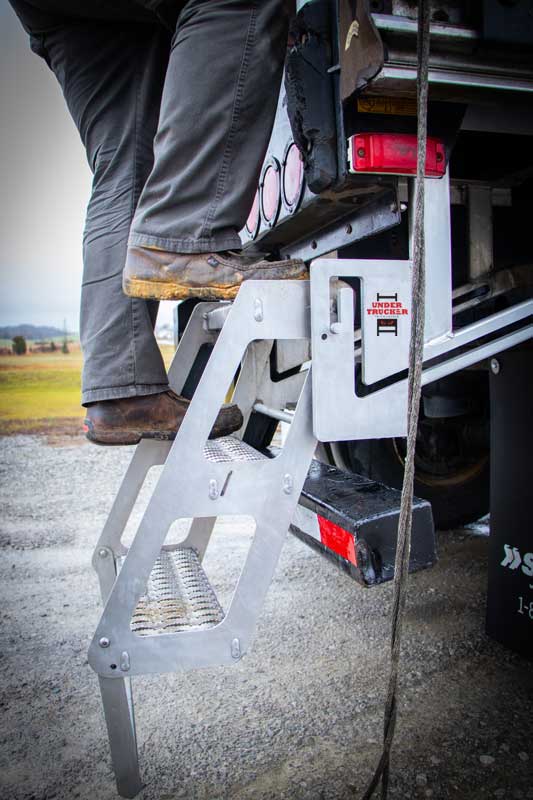

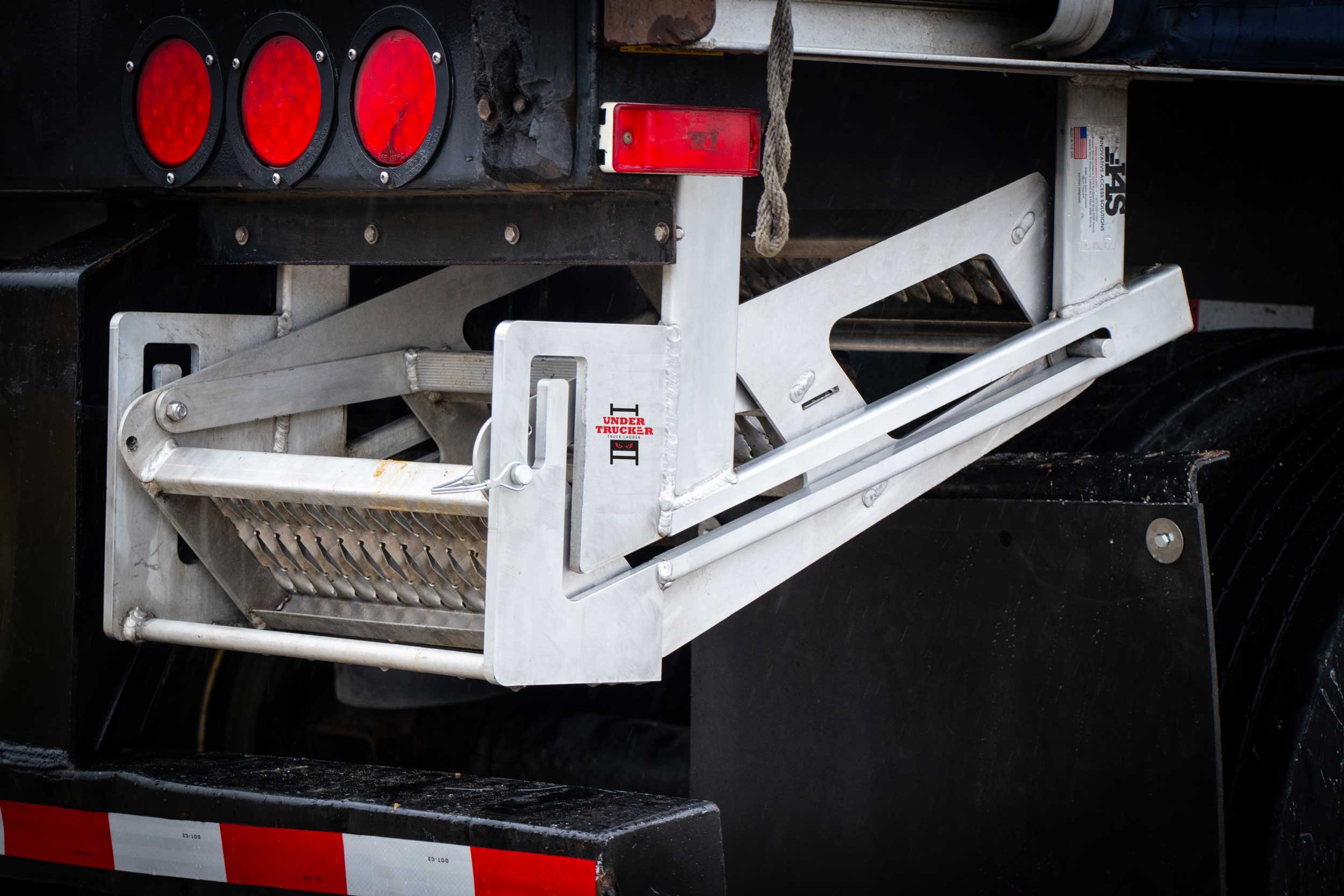

Our Under Trucker® Ladder gives you easy access to your trailer. Compatible with most dry box trailers and slide axles, this ladder mounts easily under your bed. To use, simply unhook the locking pin, guiding the ladder down the side channel slide to the working position. When the job is complete; reverse the action to simply stow & go with ease. The ladder is recessed under the trailer to eliminate collision with real docks. Once you install your Under Trucker® Ladder, you’ll wonder how you ever survived without one under your truck.

View Product Details Sheet

The Under Trucker® Ladder – Rear Mount:

  • Made in the USA
  • Top-Tier ANSI Rated – 400 lb. and OSHA approved construction
  • Works on the rear of most Dry Van Box Trailers and Slide Axle Trailers (not for rear installation on split/spread axle trailers)
  • Requires a mounting surface on rear of trailer frame of 22” front to rear and 21” side to side of trailer frame
  • Can be mounted on either Driver or Passenger Side
  • Easily installs with (4) Grade 8 3/8” bolts (mounting hardware provided)
  • Ladder securely locks in stowed position with locking pin.
  • Constructed of high-grade billet and extruded aluminum
  • (3) aggressive, slip-resistant 18” wide Grip Strut® step treads
  • *Side-Mount Trailer options available
  • *Powder-Coating options available
  • Storage Rack dimensions: 21w X 22d X 21h
  • Ladder dimensions: 18w X 34h

The Under Trucker® Ladder – Side Mount:

  • Made in the USA
  • Top-Tier ANSI Rated – 400 lb. and OSHA approved construction
  • Mounts under the deck on either side of the trailer
  • Designed to clear the ratcheting systems of most trailers
  • Field verify dimensions before installation
  • Required mounting surface dimensions are 28” front to rear and 20” side to side of trailer frame
  • Easily installs with (4) Grade 8 3/8” bolts (mounting hardware provided)
  • Ladder securely locks in stowed position with locking pin.
  • Constructed of high-grade billet aluminum
  • (3) aggressive, slip-resistant 18” wide Grip Strut® step treads
  • *Powder-Coating options available
  • Storage Rack dimensions: 19.75w X 28d X 16.625h
  • Ladder dimensions: 18w X 34h

** Optional Stake Pocket Handles Available.

Additional information

Weight 30 lbs
Dimensions 31 × 21 × 19 in
Mount

Rear Mount, Side Mount
