Description

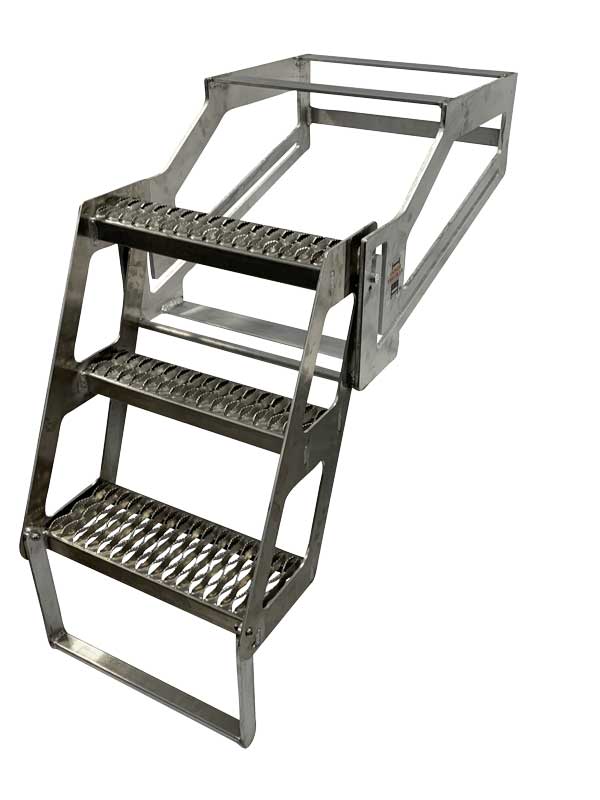

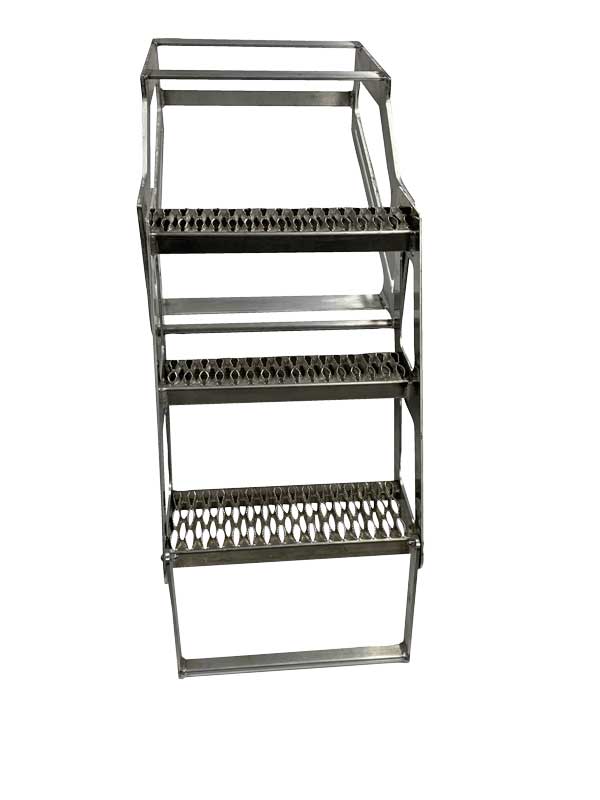

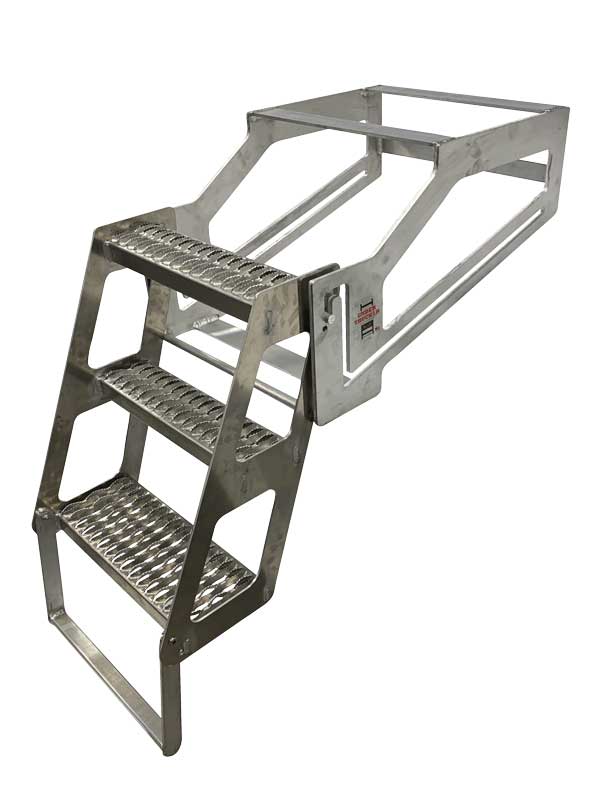

ANSI A14.7-2011 Under Trucker Truck Ladder – Side Mount
Our Under Trucker Truck Ladder – Side Mount gives you easy access to your trailer. Compatible with most dry box trailers, flat beds and slide axles, this ladder mounts easily under your bed. To use, simply unhook the locking pin, guiding the ladder down the side channel slide to the working position. When the job is complete; reverse the action to simply stow & go with ease. The ladder is recessed under the trailer to eliminate collision with real docks. Once you install your Under Trucker Truck Ladder – Side Mount, you’ll wonder how you ever survived without one under your truck.
The Under Trucker Truck Ladder – Side Mount:
- Made in the USA
- Top-Tier ANSI Rated – 400 lb. and OSHA compliant construction
- Mounts under the deck on either side of the trailer
- Designed to clear the ratcheting systems of most trailers
- Field verify dimensions before installation
- Required mounting surface dimensions are 28” front to rear and 20” side to side of trailer frame
- Easily installs with (4) Grade 8 3/8” bolts (mounting hardware provided)
- Ladder securely locks in stowed position with locking pin.
- Constructed of high-grade billet aluminum

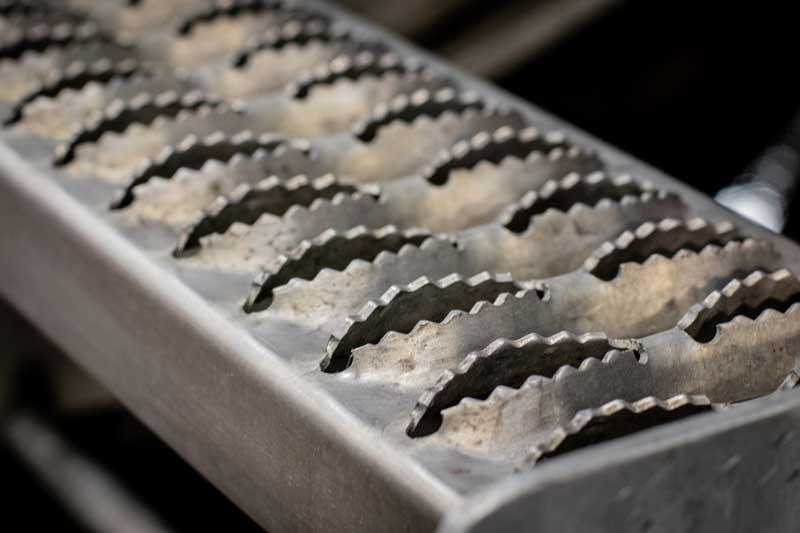

- (3) aggressive, slip-resistant 18” wide Grip Strut ® step treads
- *Powder-Coating options available

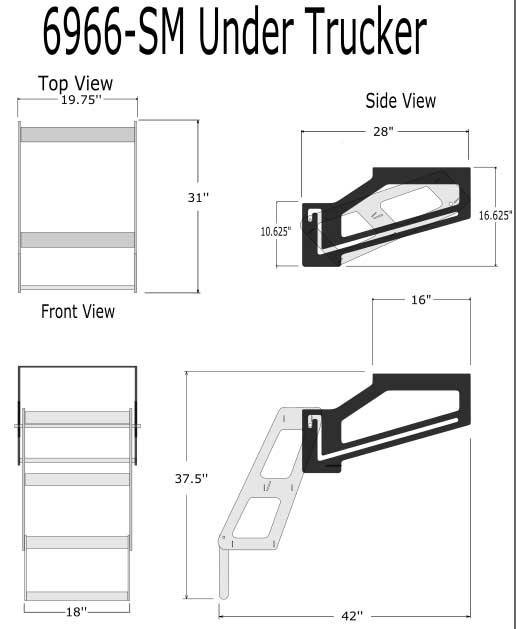

- Storage Rack dimensions: 19.75w X 28d X 16.625h
- Ladder dimensions: 18w X 34h
** Optional Stake Pocket Handles Available.
